产品介绍

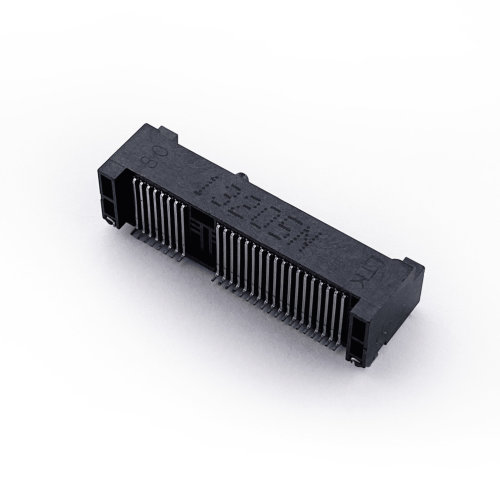

Features of Mini PCIe Connectors
- Meet high-speed electrical requirement from PCI-SIG, EIA&MIL-STD standards
- Excellent mechanical strength, dimensional stability, electrical performance, flame retardant, chemical, and high-temperature plastic
- Reflow process compatible
- Compliance with CE & FCC & SDS & RoHS requirements
- Capacity 12 million pcs per month
- Customizable specification
Ratings
- Voltage:50V AC(rms)
- Current:0.5A per pin
- Operation Temperature:-40~+80℃
- PCB Orientation: Right angle
规格
| Product No. | Type | PCB Mounting | Height | Pitch | Pins |
| Mini PCIe | Right Angle Standard Top-Mount |
SMT/Hybrid | 4.0/ 4.5/ 5.7/ 6.7/ 6.8/ 7.0/ 8.0/ 9.0/ 11.0mm | 0.8mm | 52 |
