产品介绍

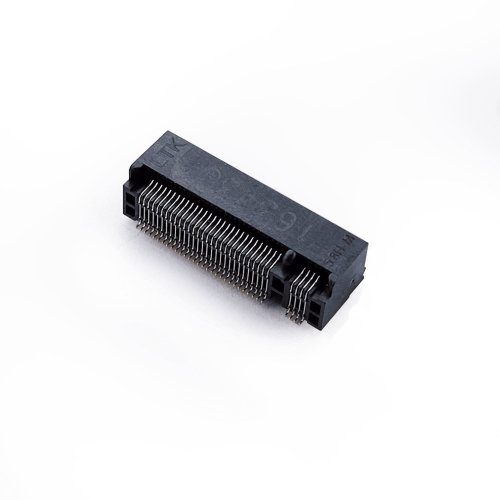

Features of M.2 (NGFF) Connectors
- Meet high-speed electrical requirement from PCI-SIG, EIA&MIL-STD standards
- Excellent mechanical strength, dimensional stability, electrical performance, flame retardant, chemical, and high-temperature plastic
- Reflow process compatible
- Compliance with CE & FCC & SDS & RoHS requirements
- Capacity 12 million pcs per month
- Customizable specification
Ratings
- Voltage:50V AC
- Current: 1A or 0.5A (per min)
- Operating Temperature: -40~+80℃(Humidity range 85%RH max.)
- PCB Orientation: Right angle
规格
| Product | Mounting | Orientation | Spec. Mix | Key | Pitch | Pins |
| M.2 (NGFF) Gen 4 1A & 0.5A |
SMT/Hybrid | Right Angle, Standard | 1A Top-mount: 2.05/ 2.2/ 3.2/ 4.2 mm | A, B, E, M | 0.5mm | 67 |
| 0.5A Top-mount: 2.0/ 2.65/ 3.0/ 3.2/4.0/ 4.8/ 5.0/ 5.8/ 6.4/ 6.7/ 8.5/ 10.0 mm | ||||||
| 0.5A Top-mount: 1.2/ 1.35 mm |
