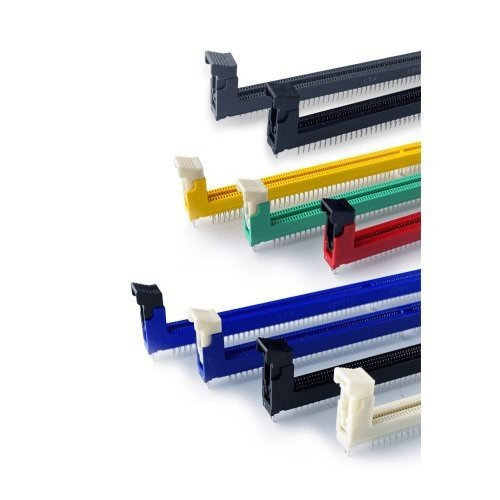

    DDR4 DIMM Socket Through-Hole Type

    DDR4 Long DIMM Socket, Through-Hole type, Standard type, 0.85 mm pitch, 288 pins. We also provide DDR4 SMT type and DDR5.

    分类： ,
    分享:

    产品介绍

    Features of DDR4 LONG DIMM Socket - Through-Hole Type

    • Meet the high-speed electrical requirement of JEDEC, EIA & MIL-STD standards
    • Reflow / Wave soldering process compatible
    • Housing material: w/ RoHS / Halogen free; Colors: black / blue / red / white
    • Ejector options: single / double; Package options: tray / hot tray
    • Compliance with CE & FCC & RoHS requirements
    • Customizable specification

    Ratings

    • Voltage：25V AC (rms)
    • Current：0.75A (per pin)
    • Operating Temperature：-55~85℃ (Humidity range 85% RH max.)

    规格

    PCB Mounting Type PCB Orientation Height Pitch Pin
    Through-Hole Type Standard Vertical 20.95mm 0.85mm 288
